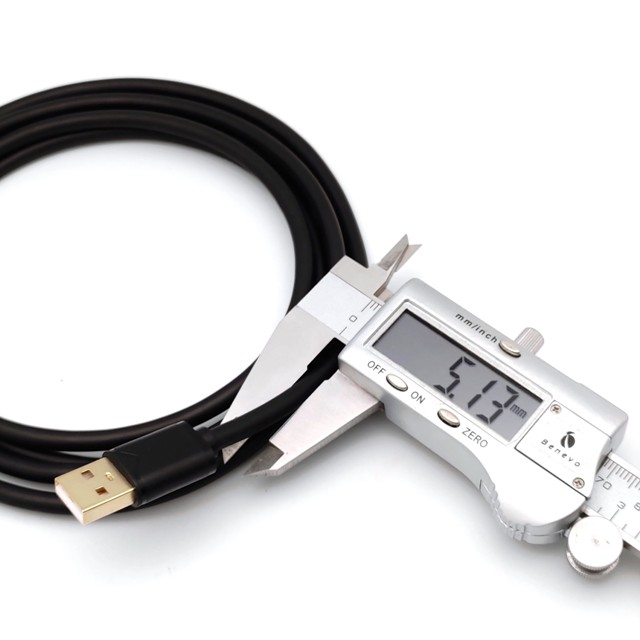

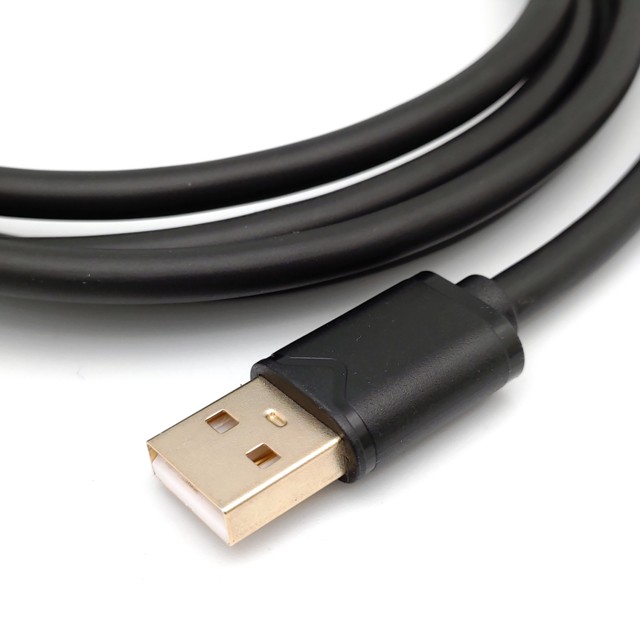

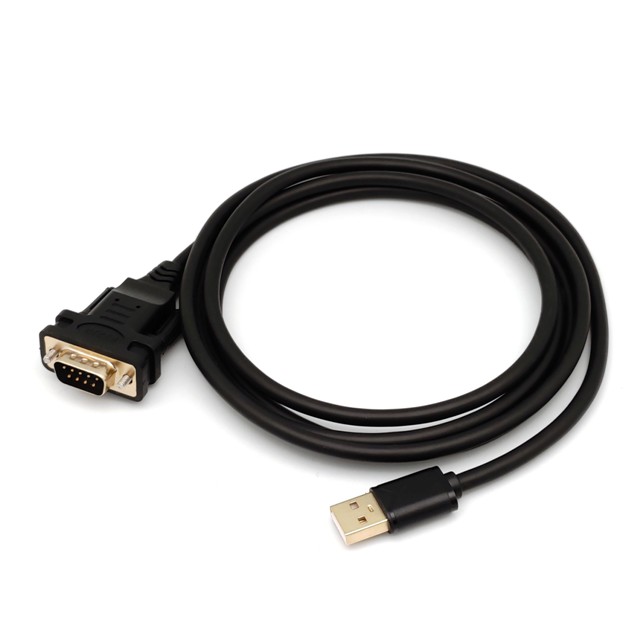

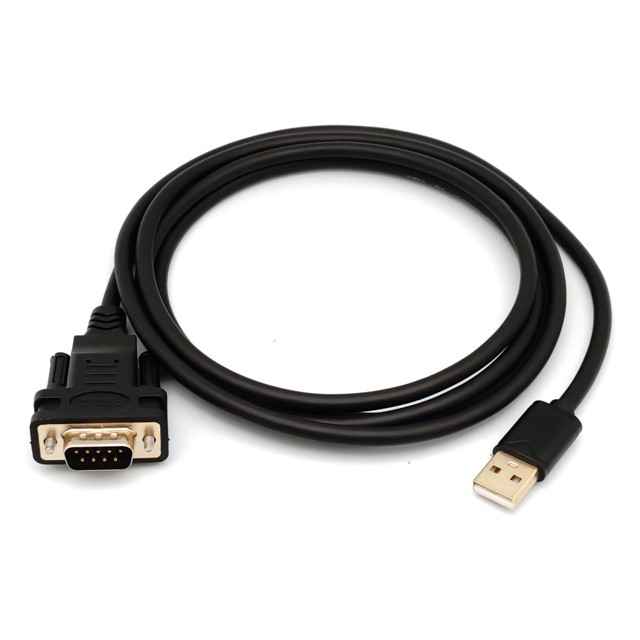

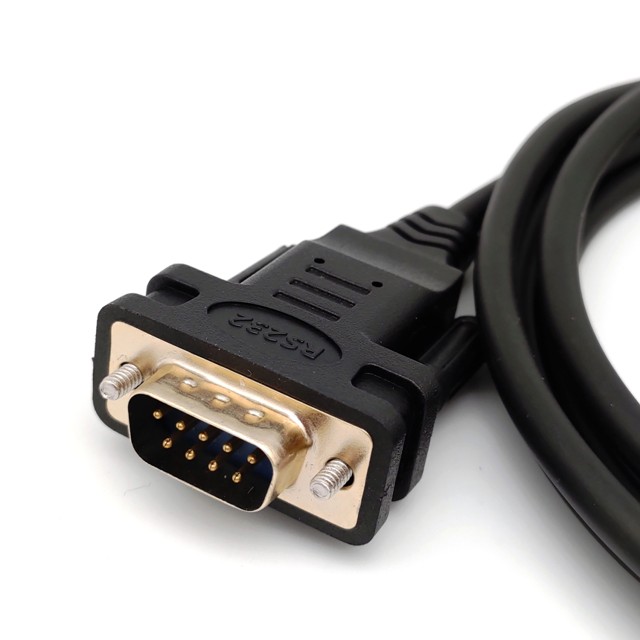

1.8米 USB2.0轉RS232訊號控制線(FTDI晶片) (BUSB2RS232)

The FT232B is a USB to serial UART interface with the following advanced features: ◆ Single Chip USB to Asynchronous Serial Data Transfer ◆ Full Handshaking & Modem Interface Signals ◆ UART I/F Supports 7 / 8 Bit Data, 1 / 2 Stop Bits and Odd/Even/Mark/Space/No Parity ◆ Data rate 300 => 3M Baud (TTL) ◆ Data rate 300 => 1M Baud (RS232) ◆ Data rate 300 => 3M Baud (RS422/RS485) 7. 384 Byte Receive Buffer / 128 Byte Transmit Buffer for high data throughput ◆ Adjustable RX buffer timeout ◆ Fully Assisted Hardware or X-On / X-Off Handshaking In-built support for event characters and line break condition ◆ Auto Transmit Buffer control for RS485 ◆ Support for USB Suspend / Resume through SLEEP# and RI# pins ◆ 4.35V to 5.25V single supply operation ◆ Support for high power USB Bus powered devices through PWREN# pin ◆ Integrated level converter on UART and control signals for interfacing to 5V and 3.3V logic ◆ Integrated 3.3V regulator for USB IO ◆ Integrated Power-On-Reset circuit ◆ Integrated 6MHz – 48Mhz clock multiplier PLL ◆ UHCI / OHCI / EHCI host controller compatible ◆ USB 1.1 and USB 2.0 compatible ◆ USB VID, PID, Serial Number and Product Description strings in external EEPROM ◆ EEPROM programmable on-board via USB ◆ Available as a compact lead free RoHS compliant 32-LD LQFP package (FT232BL) or 32-LD QFN package (FT232BQ).
