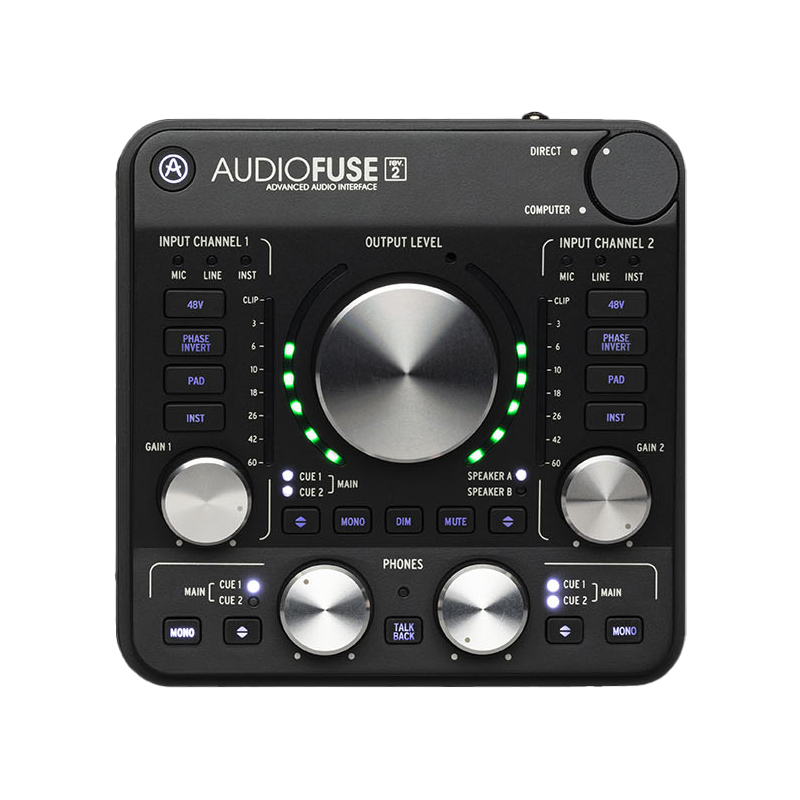

Arturia AudioFuse Rev2 通用型 錄音介面 公司貨

ARTURIA 台灣總代理穎凱非人為故障保固一年 Line/Instrument Inputs • Line input impedance: 20k ohm (symmetric), 10k ohms (asymmetric) • Instrument input impedance: 1.1M ohms asymmetric • Instrument maximum input level: +10dBu • Frequency response: 20Hz to 20kHz +/-0.05dB Line Input (Gain Switch 0dB) • THD+N @ -10dB gain: (TBA, work in progress) • Dynamic range @ -10dB gain, insert output level: +18dBu (127.5dB A-weighted) • THD+N @ 10dB gain: (TBA, work in progress) • Dynamic range @ 10dB gain, insert output level: +18dBu (115dB A-weighted) • Maximum input level: >+24dBu Microphone Preamps • Input impedance: 4k ohms • Signal-to-noise ratio (EIN): < -128dB, unweighted, (< -129dB A-weighted) • Frequency response: 20Hz to 20kHz +/-0.05dB • Gain range: 18dB to 72dB • THD+N: < -103dBu A-weighted • Dynamic range insert output level: +18dBu (113dB A-weighted) Line Output • Output impedance: • Maximum output level: >+24dBu • Dynamic range: 118dB A-weighted • THD+N: (TBA, work in progress) Inserts • Output impedance: • Input impedance: 10k ohms asymmetric • Maximum output level: +18dBu • Nominal input level: +14dBu 2 DiscretePRO microphone preamps 2 RIAA phono preamps 4 analog inputs 2x Mic/Instrument/Line (XLR / 1/4″ TRS) 2x Phono/Line (RCA / 1/4″ TRS) 4 analog outputs (1/4″ TRS) 2 analog inserts (1/4″ TRS) ADAT in/out S/PDIF in/out Word clock in/out MIDI in/out 24-bit next-generation A-D/D-A converters at up to 192kHz sampling rate Talkback with dedicated built-in microphone (up to 96 kHz Sample Rate) A/B speaker switching Direct monitoring 2 independent headphone outputs Separate master and monitor mix channels USB interface with PC, Mac, iOS, Android and Linux compatibility 3-port USB hub 3 models: Classic Silver, Space Grey, Deep Black Aluminum chassis, hard leather-covered top cover DiscretePRO® Technology
