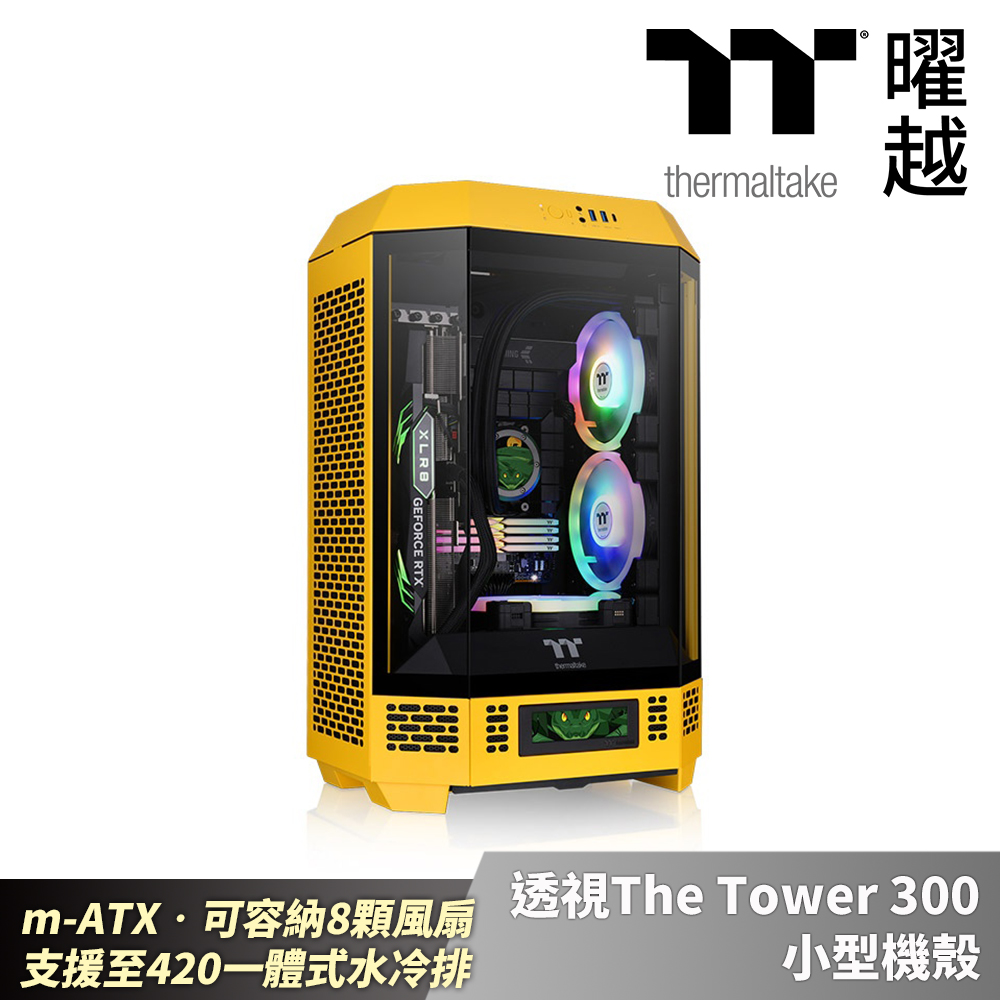

透視The Tower 300 小型機殼 m-ATX可容納8顆風扇 支援至420一體式水冷排 蜂芒黃_CA-1Y4-00S4WN-00

型號 CA-1Y4-00S4WN-00 系列 透視 The Tower 系列 機型 Micro Tower 尺寸 (高*寬*深) 551 x 342 x 281 mm (22.5 x 14 x 11.5 inch) 重量 8.3 kg / 18.3 lbs. 側窗 3mm Tempered Glass x 3 顏色 Bumblebee 材質 SPCC 散熱系統 Top(exhaust): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 2 儲存裝置 3 x 3.5” or 3 x 2.5” PCI 插槽 4 適用主機板 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX) I/O 連接埠 USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 電源供應器 Standard PS2 PSU (optional) 風扇支援 Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right Side: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Rear: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Power Cover: 1 x 120mm 1 x 140mm 水冷排支援 Right Side(AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm 備註 CPU cooler height limitation: 210mm VGA length limitation: 280mm(With power cover) 400mm(Without power cover) PSU length limitation: 220mm
