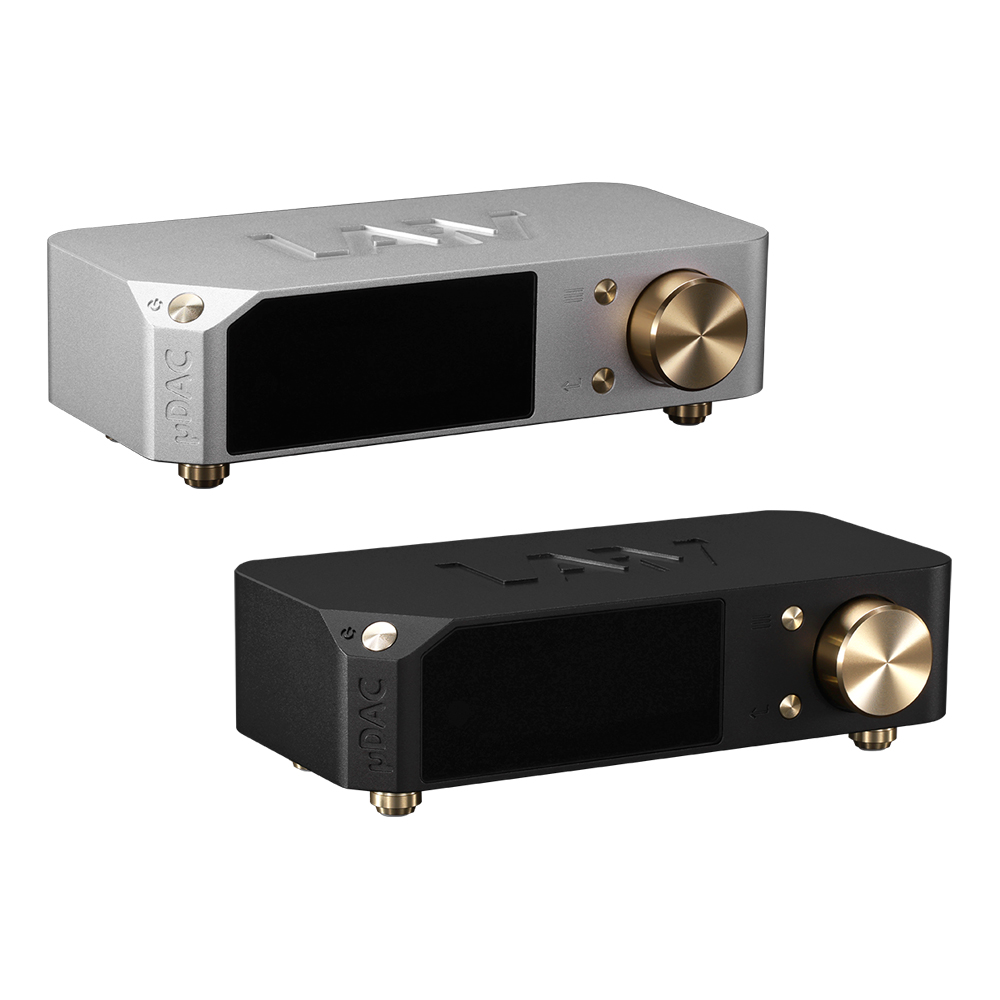

LAiV HARMONY µDAC 數位類比轉換器 公司貨 (uDAC/muDAC)

■ Chip： Intel® Altera® Cyclone® FPGA ■ Clock： Accusilicon AS318-B Ultra-Low Phase Noise FEMTO Oscillator ■ Digital Inputs： 1 x USB 1 x Optical 1 x Coaxial 1 x I2S ■ Digital Outputs： 1 x XLR, maximum at 4 Vrms, approx. 82 Ω ■ Supported Formats (Input dependent)： - USB PCM: 44.1kHz - 768kHz DSD: DSD64 - DSD256 - Optical PCM: 44.1kHz - 192kHz DSD: DSD64 via DoP only - Coaxial PCM: 44.1kHz - 192kHz DSD: DSD64 via DoP only - I2S PCM: 44.1kHz - 768kHz DSD: DSD64 - DSD256 ■ Frequency Response： 20Hz – 20kHz, within ± 0.25 dB ■ THD+N： 0.006% ■ Crosstalk： ≤ -120 dB ■ Signal to Noise Ratio (SNR)： ≥ 125 dB ■ Dynamic Range： ≥ 110 dB ■ Features： Sleek & Compact design NOS / OS Mode Positive / negative phase Display brightness, delay dim, and delay off 8 x I2S Mode with Laiv product auto-configured I2S clock supported Galvanic isolation for enhanced signal purity LAiV Harmony R-2R ladder network architecture Discrete class A output buffer. ■ Controls： Remote control Front panel ■ Power： 15VDC / 2A, DC 5.5/2.5 mm female. ■ In the Box： Welcome card with Quick Start guide Harmony μDAC Power adapter with interchangeable plugs
